Classic Kubernetes Installation Process

Run on All Machines

All machines are running Debian. First, install Docker:

 sudo apt-get update
 sudo apt-get install -y \
    apt-transport-https \
    ca-certificates \
    curl \
    gnupg \
    lsb-release

curl -fsSL https://download.docker.com/linux/debian/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg

echo \
  "deb [arch=amd64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/debian \
  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt-get update
sudo apt-get install -y docker-ce docker-ce-cli containerd.io

sudo mkdir /etc/docker
cat <<EOF | sudo tee /etc/docker/daemon.json
{
  "exec-opts": ["native.cgroupdriver=systemd"],
  "log-driver": "json-file",
  "log-opts": {
    "max-size": "100m"
  },
  "storage-driver": "overlay2"
}
EOF


sudo usermod -aG docker ${USER}

sudo systemctl restart docker

sudo su ${USER}

At this point, running docker ps -a should work without errors, indicating Docker was installed successfully.

Next, install Kubernetes components:

cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
br_netfilter
EOF

cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sudo sysctl --system

sudo apt-get update
sudo apt-get install -y apt-transport-https ca-certificates curl

sudo curl -fsSLo /usr/share/keyrings/kubernetes-archive-keyring.gpg https://packages.cloud.google.com/apt/doc/apt-key.gpg

echo "deb [signed-by=/usr/share/keyrings/kubernetes-archive-keyring.gpg] https://apt.kubernetes.io/ kubernetes-xenial main" | sudo tee /etc/apt/sources.list.d/kubernetes.list

sudo apt-get update
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

Run on the Master Node

Initialize the control plane:

sudo kubeadm init --apiserver-advertise-address masterip --control-plane-endpoint masterdns --pod-network-cidr 10.244.0.0/16

Save the last part of the output for later use, including instructions on how to configure .kube and the join command for nodes. Follow the instructions to configure the .kube file.

Then initialize the network plugin:

wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
kubectl apply -f kube-flannel.yml

Check if pods are running properly:

kubectl get pods -A

On another node, install Kubernetes components, then run the join command. This command is printed at the end of the kubeadm init process.

Afterwards, check if the pods are running properly.

Download the dashboard:

wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.2.0/aio/deploy/recommended.yaml -o dashboard.yaml

Edit dashboard.yaml: Add nodePort: 31001 below port 8443, and change the type to NodePort above it. Find the namespace= line and add a line below it: - –token-ttl=43200 For details, refer to: https://www.huaweicloud.com/articles/dc1dcb0c48cc785a9193c9ce709c8b35.html

Create an admin role:

kubectl create -f https://raw.githubusercontent.com/rootsongjc/kubernetes-handbook/master/manifests/dashboard-1.7.1/admin-role.yaml

Apply the pod:

kubectl apply -f dashboard.yaml

Check the port:

sudo lsof -i:31001

Get the token:

kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-token | awk '{print $1}')

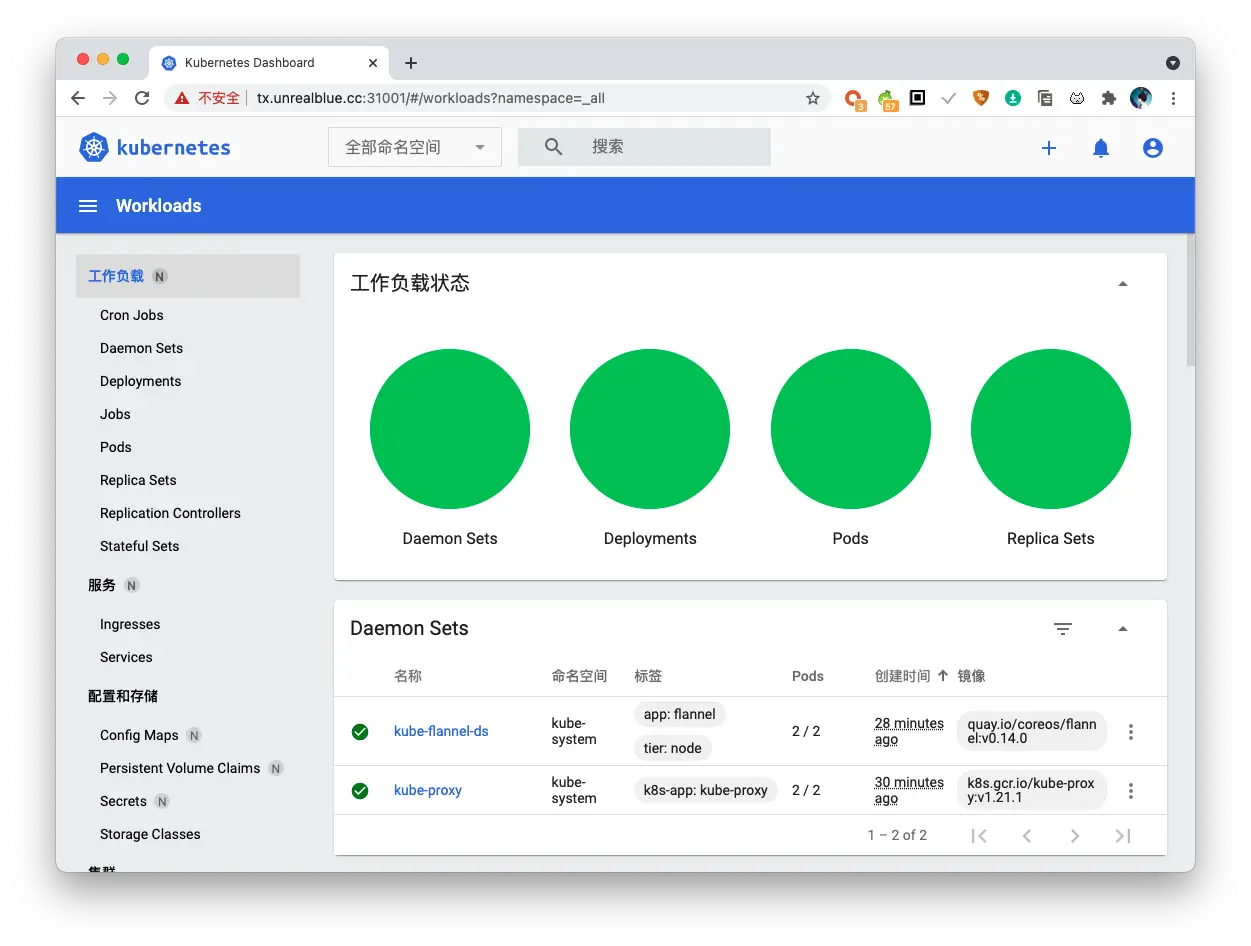

Visit https://masterip:31001 and enter ’thisisunsafe’ in Chrome, then input the token.

dashboard
